3D MODEL 8068

      FEATURES

  • Split body with no integral side outlet or mounting flange.

  • Can he attached via clamping dogs to spools with flanges for 1 3 3/8”, 1 6”, and 20” BOP’s.

  • Drive bushing/stripper rubber assembly will pass through 17 1/2” rotary.

  • Rotating Drilling I lead will pass through 27 1/2” table.

  • Used with mudline casing suspension systems when attached to 30” mounting flange.

  • All internal parts interchangeable with Model 7068.

Size

Lower Flange

Maximum Bore

Side Outlet

Height

W/STD. Bushing

W/Short Bushing

16 3/4"

16 3/4" - 2000#

16 3/4"

9" - 3000#

42 3/4"

36 5/8"

20 3/4"

20 3/4" - 2000/3000#

20 3/4"

9" - 3000#

42 3/4"

36 5/8"

30"

None*

38 3/4"

None*

25 3/4"

19 5/8"

30"/36""

None*

26 9/32"

None*

25 3/4"

19 5/8"

KELLY BUSHING: 3 1/2” Hex or Square, 4 1/4” Hex or Square, and 5 1/4” Hex only.
STRIPPER RUBBERS: 2 7/8”, and 3 1/2”, 4 1/2”, 5”, and 5 1/2”. (Stationary casing stripper rubbers, from 6 5/8” thru 10 3/4” on special order) Other sizes on special order.

When ordering specify: (1) Model number, (2) Lower flange Size, (3)Outlet Flange Size , (4) Kelly Size and Shape, (5) Drill Pipe Size, (6) Drilling Environment, and (7) High Temperature Model if desired.

*customer welds mounting flange directly to conductor pipe

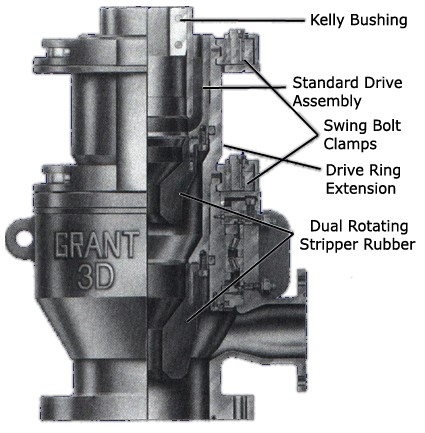

Horizontal Well Drilling Head
      FEATURES
  • Dual rotating stripper rubbers
  • Stripper rubber/drive bushing assembly will pass through 1 7 1/2” rotary
  • Special heavy duty upper stripper rubber
  • Special high pressure accumulator system
  • All internal parts interchangeable with model 7068
  • Only 14 1/2” taller than comparable Model 7068
